SHRT-4-02
Manufacter
Abat
Type
Racking cabinet
Number of levels
4

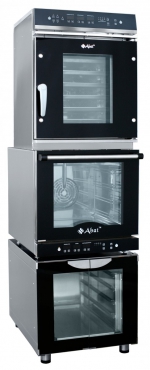

SHRT hot storage proving cabinet is designated for proving of bakery and confectionary products at public catering enterprises.
Key information:
| Nominal power consumption, kWt | 0,8 |
| Nominal voltage, V | 230 |
| Number of tubular heating elements | 1 |
| Air temp. within the chamber, °С | 45 |
| The volume of water poured into the tub, dm3 | 3 |
| Number of tubs | 1 |
| Humidity level in the chamber, % | 50-95 |
| Tray size, mm | 325х265 |
| Number of trays | 4 |
| Overall dimensions, mm | 520х680х512 |
| Weight, kg | 40 |
The chamber of stainless steel. The capacity of the cabinets is 4 trays of 325х265 mm size. The temperature regulation range is from +30°+85°C. A uniform heat distribution is ensured within the chamber due to the convection process. The steam humidification is achieved by steam evaporation from the bottom water container under the temperature effect. A glass door and a chamber illumination of the cabinet allow easily monitoring of the cooking process. Proving cabinets are used in cooking lines together with convection ovens of KPP-1/2 types.
