SHZHE-2K-2/1
Manufacter
Abat
Type
Frying cabinet
Number of levels
4

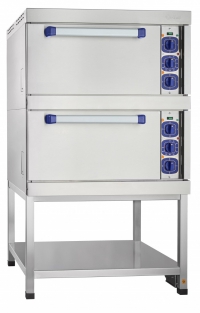

Cabinet oven, 2 sections is designated for frying semi-finished products of fish, meat and vegetables and baking small piece culinary products.
Key information:
| Nominal power consumption, kWt | 11,9 |
| Nominal voltage, V | 400/230 |
| Number of section | 2 |
| Convection | + |
| Time of heating the oven up to 240 °C, min. | 20 |
| Temperature regulation range, °C | 20-270 |
| Thermostatic switch off at , °C | 320 |
| Internal dimensions of the section, mm | 538x715x290 |
| Tray size, mm | 530x470x30 |
| Number of levels in the section | 4 |
| Overall dimensions, mm | 840(900)x900x1510 |
| Weight, kg | 150 |
Each section contains one grid and one GN 2/1 tray of 530x650 mm size, manufactured of ferrous material. It has a separate power regulation of the upper and lower tubular heating units. Operative temperature range is 20-270°C. Thermostat up to 300°C. It has an option of forced convection and steam humidification. All the structure components and the support unit are made of stainless steel. The device has height adjustable legs.
