SHZHE-3-01
Manufacter
Abat
Type
Frying cabinet
Number of levels
4

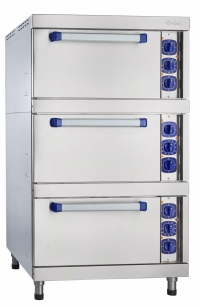

Cabinet oven, 3 sections is designated for frying semi-finished products of fish, meat and vegetables and baking small piece culinary products.
Key information:
| Nominal power consumption, kWt | 14,4 |
| Nominal voltage, V | 400/230 |
| Number of section | 3 |
| Time of heating the oven up to 240 °C, min. | 30 |
| Temperature regulation range, °C | 20-270 |
| Thermostatic switch off at , °C | 320 |
| Internal dimensions of the section, mm | 538x535x290 |
| Tray size, mm | 530x470x30 |
| Number of levels in the section | 4 |
| Overall dimensions, mm | 840(900)x900x1500 |
| Weight, kg | 190 |
Stainless steel chamber. Each section contains three trays of 530x470x30 mm size. It has a separate power regulation of the upper and lower tubular heating units. Operative temperature range is 20-270°C. Thermostat up to 300°C. The cabinet oven has a painted support unit, lateral and back facing. The device has height adjustable legs.
