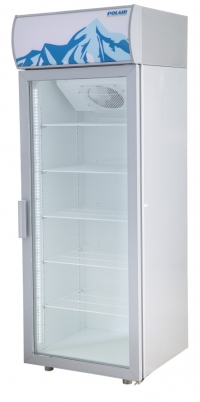

DM105-S vers.2.0
Manufacturer
Polair
Type of door
Glass
Style of door
Hinged
Type of material
Polymer coated steel
Operating temperature
Middle
Type of cooling
Dynamic
Location of agregate
Upper
The new version of refrigerated cabinet offers additional display possibilities. The "Golden" shelf has been moved to the eye level of the man of an average height (according to statistics, they are the main buyers of drinks). The zone of optimal display is twice larger. The facing is increased by 20%. The standard delivery package is complete with 5 reinforced shelves. Vertical lighting of shelves and canape is LED. Power consumption is reduced by 33% (as compared to DM105-S).
| Case material | Polymer-coated steel |
| Operating temperature, ° C | +1…+10 |
| Volume, l | 500 |
| External dimensions, mm | 697х710х2028 |
| Wall thickness, mm | 43 |
| Environmental conditions: t °, ° C / Humidity,% | up to +32/up to 60 |
| Refrigeration type | dynamic |
| Refrigerant | R134a |
| Aggregate location | upper |
| Thermostat | electronic control unit |
| Defrost type | Automated; condensate evaporation system |
| Schraeder valve | + |
| Voltage, V / Hz | 230/50 |
| Power consumption, W | 350 |
| Power consumption per 24h, kilowatt-hour, max | 2.7 |
| Load capacity, kg | 50 |
| Shelf size, mm | 595х455 |
| Number of shelves rows | 5 |
| Shelf pitch, mm | 12,5 |
| Interior light | vertical LED |
| Illuminated canopy | + |
| Lock | option |
| Full life cycle, years | 12 |
| Door type | swinging |
| Netto, kg | 105 |
| Brutto, kg | 124 |
| Package dimensions, mm | 790х744х2125 |
